All ZinAmp modules can be purchased for use in your own project. Whether you require a regulated power supply, power-amplifier or speaker protection, our extensive range of modules can augment your existing project. Try our new Module Picker to help you find what you need: Go>>>> Built using high-quality components that are easy to source. Modules available fully assembled or as bare PBCs with parts list Sort by: Project | Module Type |
|||||||||||

|
|||||||||||
|

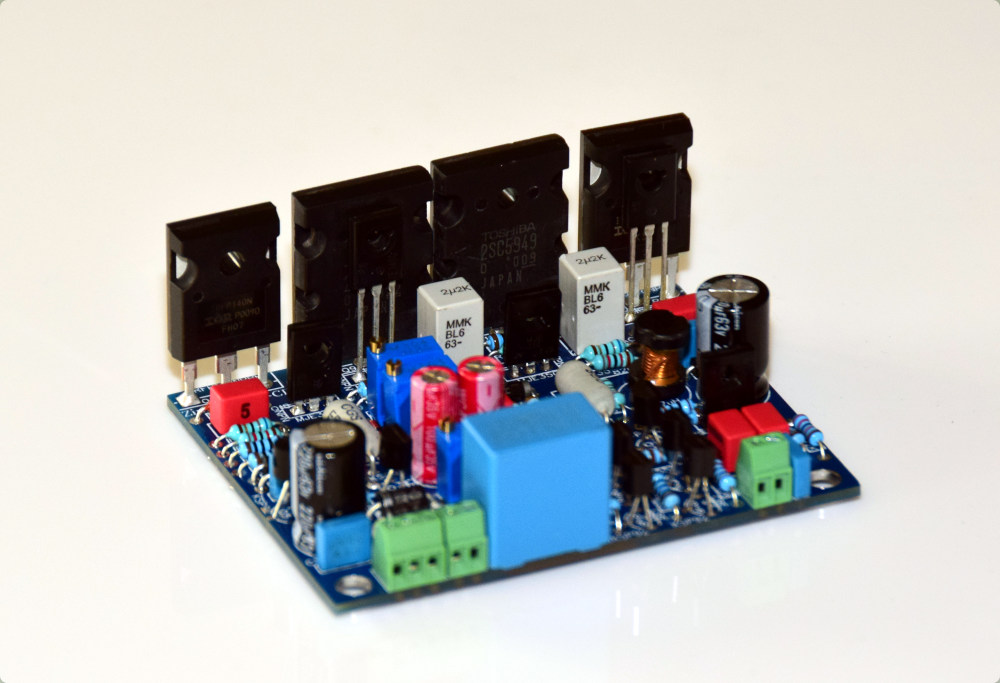

Exceptionally high-quality power amplifier featuring ZinAmp's exclusive Simultaneous Class A. Delivers 100-120w with Class A sound - heatsink required (0.45K/W). Can also be run in bridge mode - see datasheet. Requires -/+48v power supply. Heat-sink Mounting Plate also available
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details
|
|||||||||||

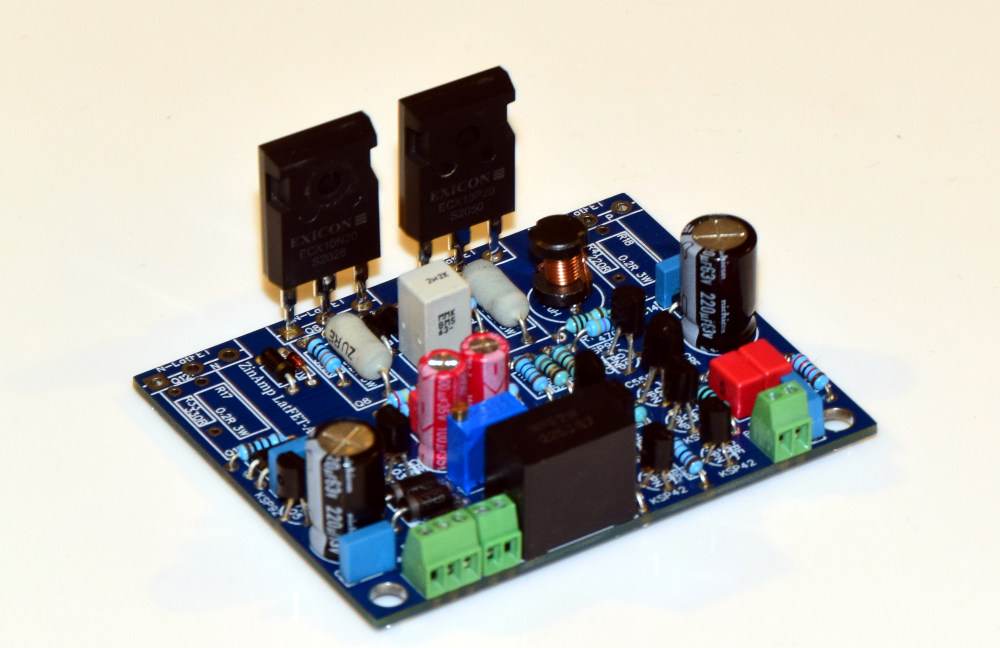

 Best-of-breed Lateral MosFET power amplifier featuring Exicon's Lateral MosFETs. Simple to build and setup and requires no biasing. Highly scalable, from 100w to 250w depending on configuration - heatsink required (0.45K/W). Can also be run in bridge mode - see datasheet. Requires -/+48v power supply. Heat-sink Mounting Plate also available
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details
|
|||||||||||

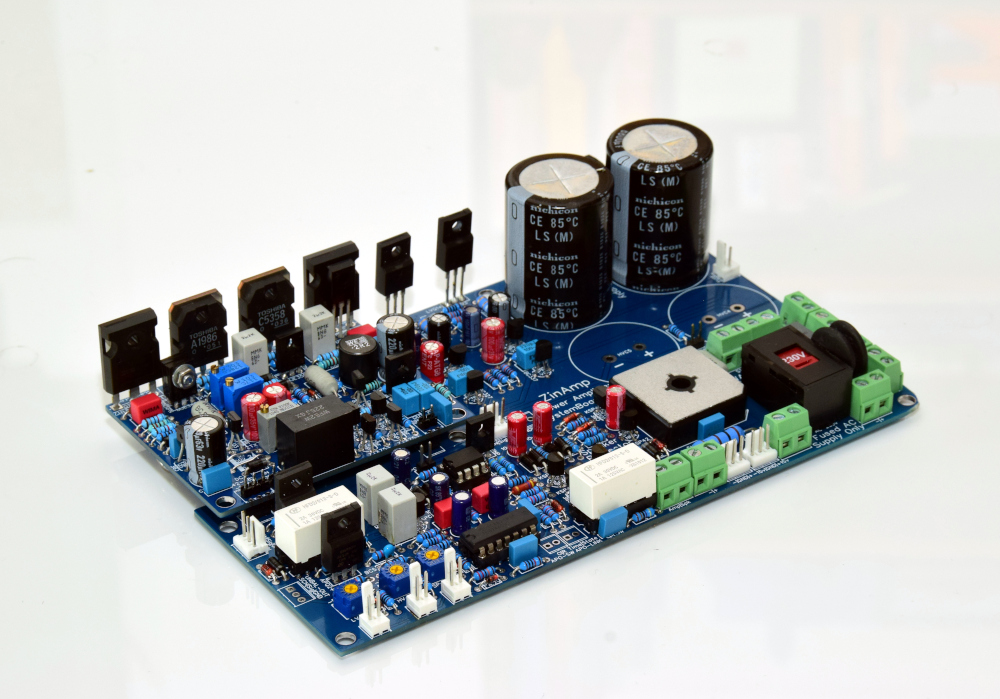

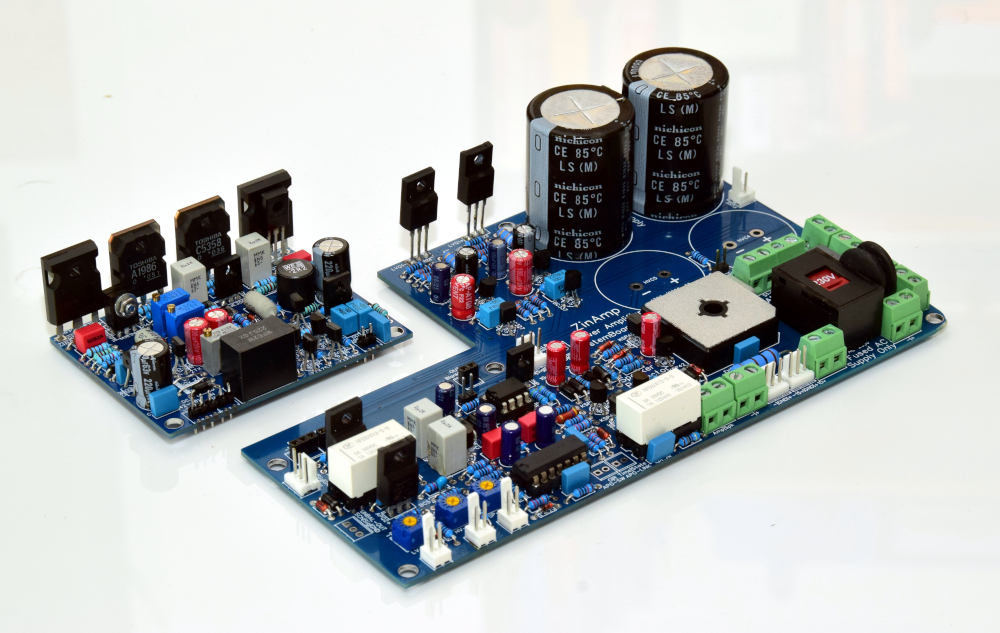

Complete Amplifier solution for a plate-amp, monoblock or stereo installation. Includes system board and SCA Power Amp module.
Control board includes AC power wiring, soft-start, speaker protection and auto power-off/on. An additional power amp module can be connected to the control board to provide stereo (L & R) channels. Support for both XLR balanced and RCA unbalanced inputs Connecting a transformer is simple. Board layout conforms with CE Low Voltage Directive in that primary and secondary AC tracks are appropriately spaced.
|
|||||||||||

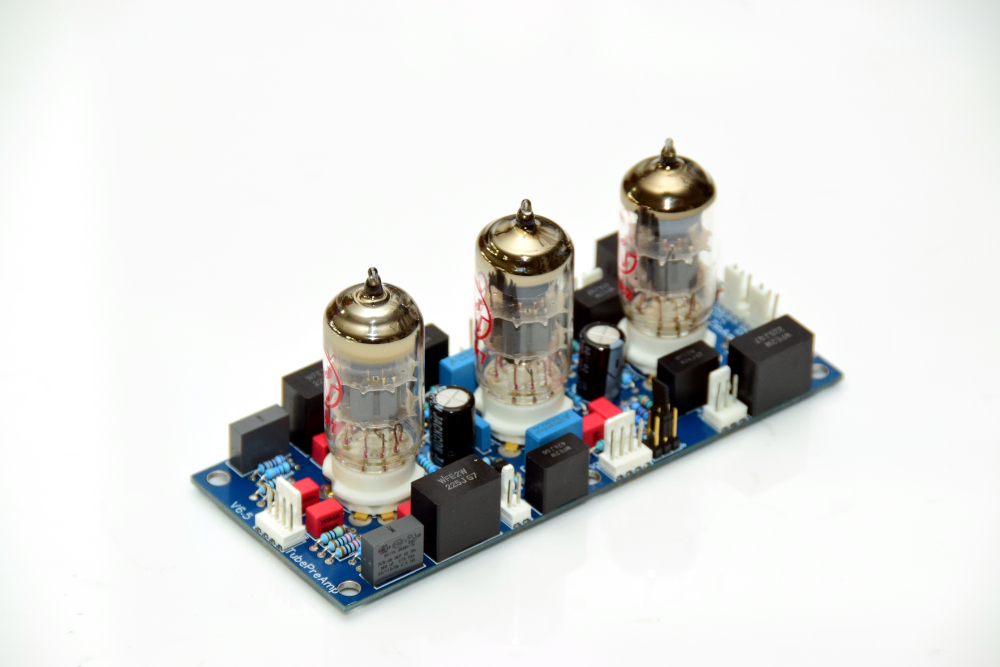

 Stereo valve pre-amplifier of exceptional quality. Warm vintage sound, very low THD and sufficient current to drive up to two power amps per channel. Requires separate power supplies for low and high voltages
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details. Valves sold separately.
|
|||||||||||

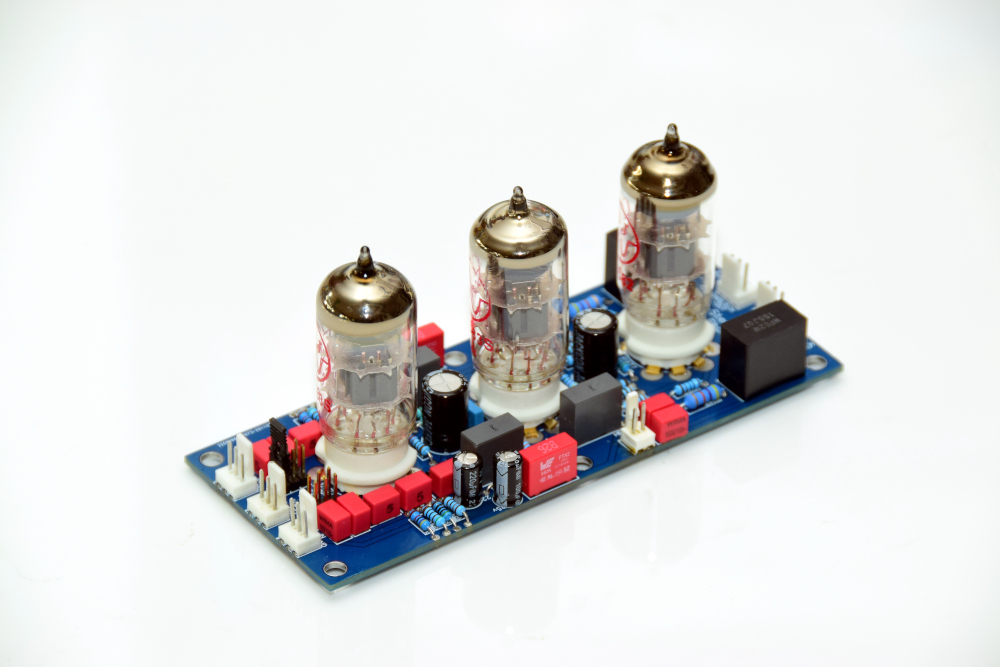

 Stereo RIAA valve phono-amplifier of exceptional quality. Warm vintage sound, very low THD and sufficient current to drive a pre-amp and another line-level amplifier simultaniously. Requires separate power supplies for low and high voltages
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details. Valves sold separately.
|
|||||||||||

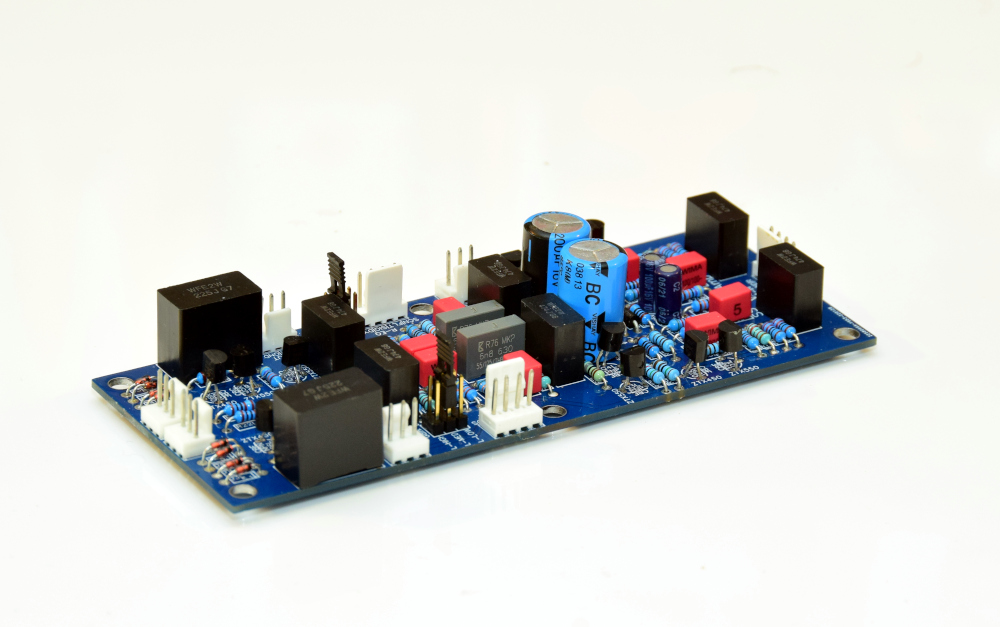

 Stereo solid-state pre-amplifier of exceptional quality. Clear open sound, very low THD and sufficient current to drive up to two power amps per channel. With -/+21v rails, this module has over 40v of peak-to-peak headroom. This provides exceptional linearity, enhanced dynamics and a tube-like warmth that is never fatiguing.
Requires -/+21v power supply Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details
|
|||||||||||

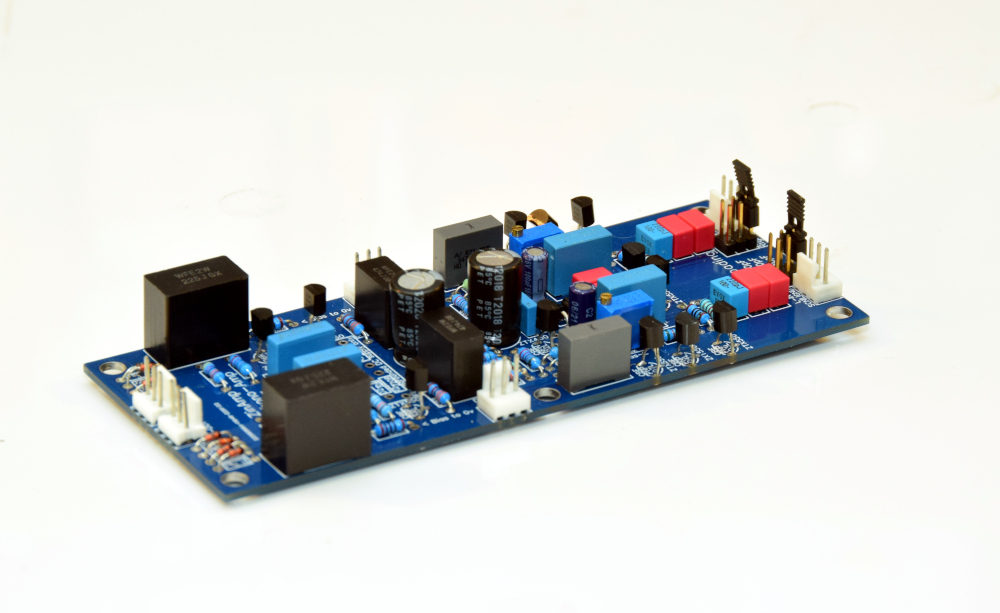

 Stereo RIAA solid-state phono-amplifier of exceptional quality. Clear open sound, very low THD and sufficient current to drive a pre-amp and another line-level amplifier simultaniously. With -/+21v rails, this module has over 40v of peak-to-peak headroom. This provides exceptional linearity, enhanced dynamics and a tube-like warmth that is never fatiguing. Requires -/+21v power supply
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details
|
|||||||||||

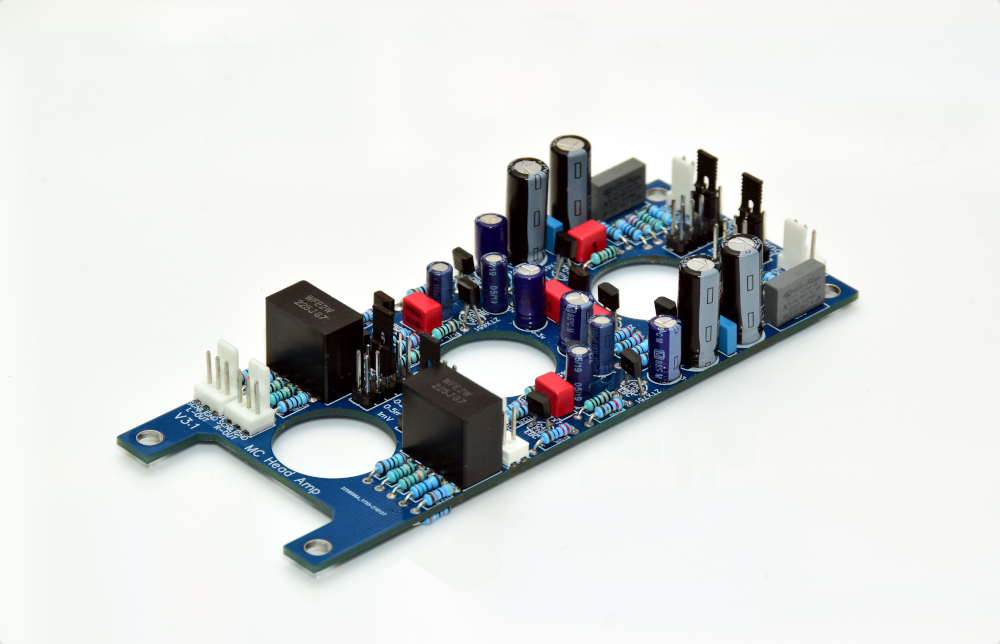

 Very low-noise stereo head-amp; adds moving-coil capability to ZinAmp's Valve Phono Amplifier. Amplifies the small-signal from a moving-coil phono cartridge to an amplitude suitable for a normal RIAA pre-amp. Selectable gain-levels and input-loadings for your particular MC cartridge.
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details.
|
|||||||||||

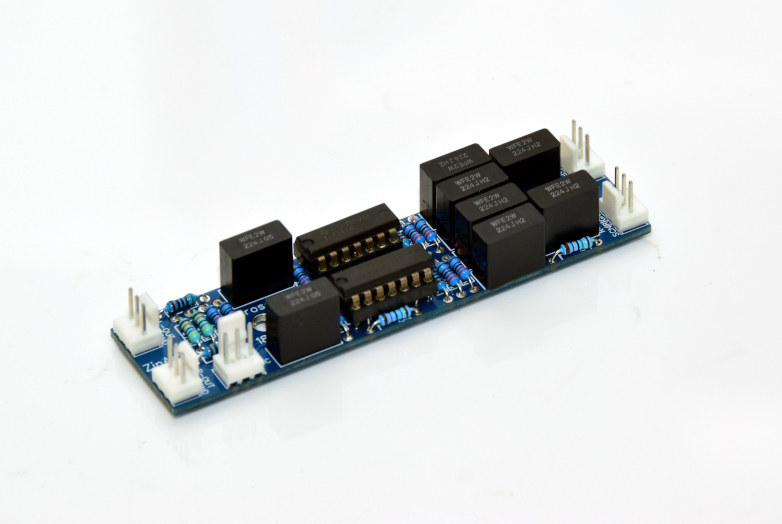

 Reduces unwanted turntable and disc-surface noise by cross-feeding frequncies below 100Hz to mono.
Based on unique research, this filter achives a far superior 18dB/oct, where most other cross-feed filters only achive 6dB/oct and have to begin cross-feeding at a much higher frequency to achieve a similar effect. An 18dB filter is much less intrusive and leaves full stereo separation untouched, whilst adding no unwanted 'flanging' sounds or similar effects. Requires a split rail DC supply - recommended -15vDC and +15vDC.
|
