All ZinAmp modules can be purchased for use in your own project. Whether you require a regulated power supply, power-amplifier or speaker protection, our extensive range of modules can augment your existing project. Try our new Module Picker to help you find what you need: Go>>>> Built using high-quality components that are easy to source. Modules available fully assembled or as bare PBCs with parts list Sort by: Project | Module Type |
||||||

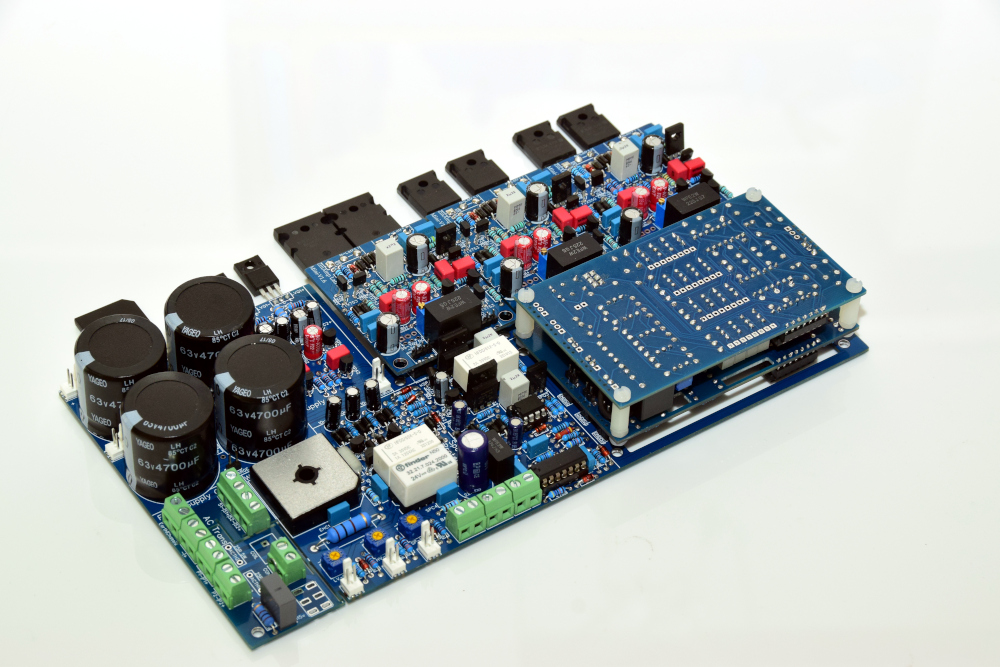

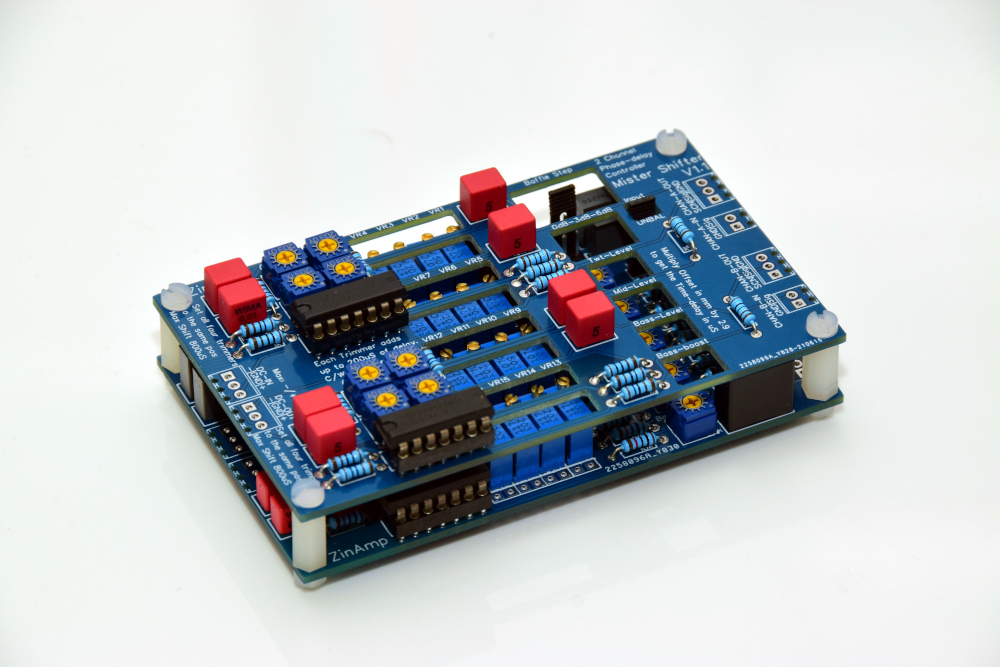

 Complete Amplifier solution for a 3-way active powered-speaker (plate) amp. Includes control board, crossover, phase-controller and 3 LateralFET power amps. Boards are designed to slot together with minimal wiring and have a slimline profile of only 40mm - ideal for powered speakers.
Control board comprises power supplies, auto-power-off/on and speaker protection. Connecting a transformer is simple. Board layout conforms with CE Low Voltage Directive in that primary and secondary AC tracks are appropriately spaced.
|
||||||

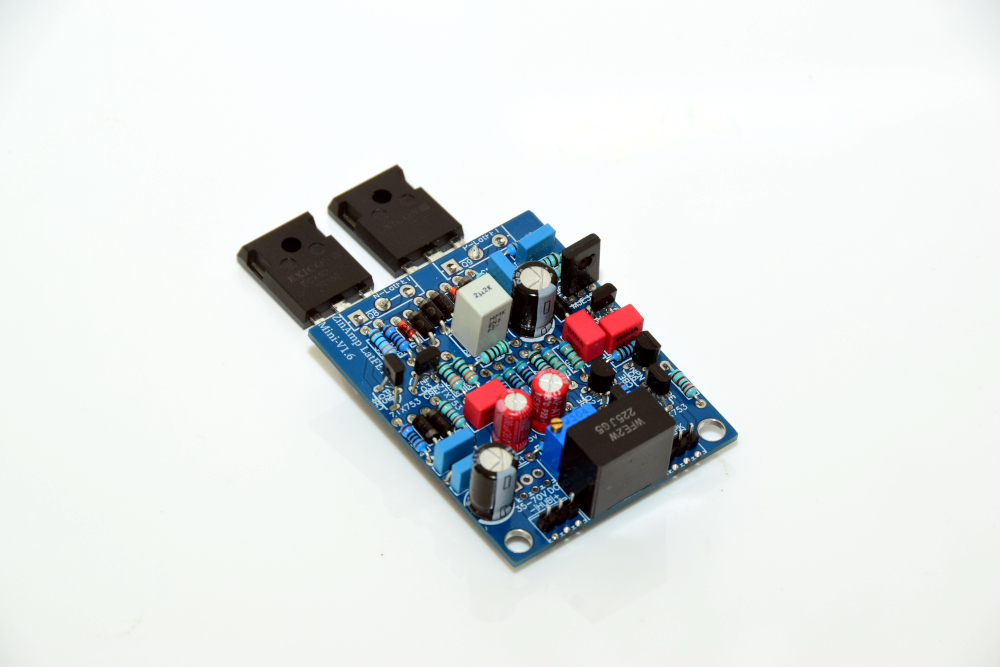

 Minaturised version of our best-of-breed Lateral MosFET power amplifier featuring Exicon's Lateral MosFETs. Available as a spare module.
Compact board layout allows three of these modules to be slotted onto our 3-way plate amp control board. This is a fully specced class A/B power amp with nothing missing except for the slots for a second pair of output MosFETs, which in a 3-way plate amp, are not necessary. Simple to build and setup and requires no biasing
|
||||||
Complete Amplifier solution for a plate-amp, monoblock or stereo installation. Includes system board and SCA Power Amp module.
Control board includes AC power wiring, soft-start, speaker protection and auto power-off/on. An additional power amp module can be connected to the control board to provide stereo (L & R) channels. Support for both XLR balanced and RCA unbalanced inputs Connecting a transformer is simple. Board layout conforms with CE Low Voltage Directive in that primary and secondary AC tracks are appropriately spaced.
|
