All ZinAmp modules can be purchased for use in your own project. Whether you require a regulated power supply, power-amplifier or speaker protection, our extensive range of modules can augment your existing project. Try our new Module Picker to help you find what you need: Go>>>> Built using high-quality components that are easy to source. Modules available fully assembled or as bare PBCs with parts list Sort by: Project | Module Type |
||||||

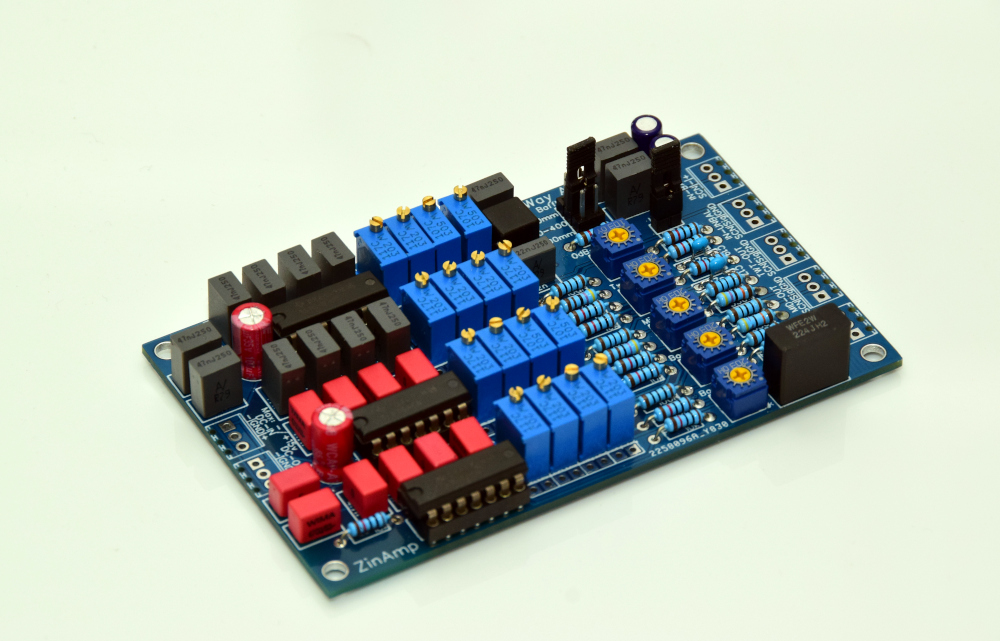

  3 Way Linkwitz-Reilly active crossover with a number of useful features including variable x/o points, baffl e-step and bass-boost. This very flexible circuit can also be used as a gain-stage. Phase-delay module fits on top of the crossover as shown. Crossover can be used with or without the phase-shifter module.
Recommend -/+15v regulated power supply
|
||||||

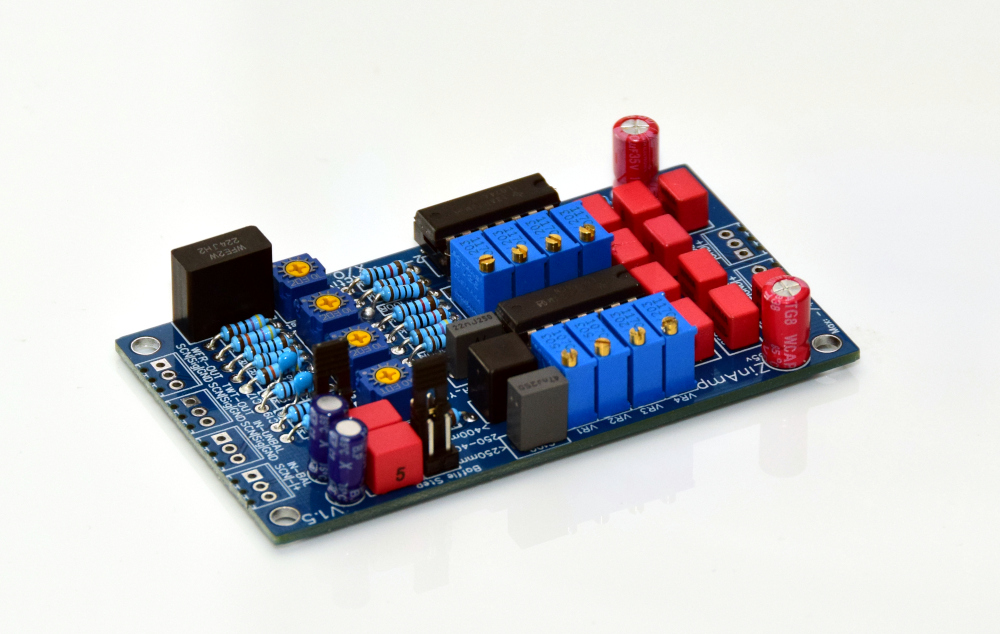

 2 Way Linkwitz-Reilly active crossover with a number of useful features including a variable x/o point, baffl e-step and bass-boost. This very flexible circuit can also be used as a gain-stage. Phase-delay module fits on top of the crossover as shown. Crossover can be used with or without the phase-shifter module.
Recommend -/+15v regulated power supply
|
||||||
 Regulated Pre Amp Supply for ZinAmp Solid State Phono and Pre Amps. Split rail supply can be set supply to +/-21v, +/-15v and +/-12v DC. can be supplied from an AC transformer or other DC Supply - like a mains adaptor. This is a truely flexible supply.
Ready-built PCB requires connectors to be purchased separately and soldered on. See datasheet for details
|
||||||
 3 Way Linkwitz-Reilly active crossover with a number of useful features including variable x/o points, baffl e-step and bass-boost. This very flexible circuit can also be used as a gain-stage. Phase-delay module fits on top of the crossover as shown. Crossover can be used with or without the phase-shifter module.
Recommend -/+15v regulated power supply
|
||||||

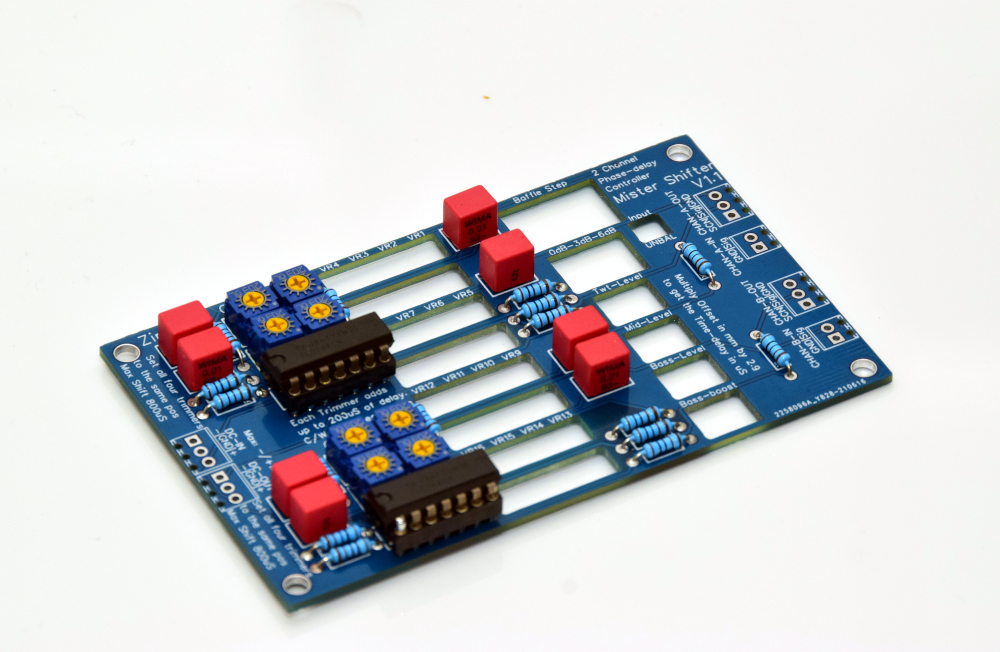

 Phase Shifter Module, for use with 3 Way Linkwitz-Reilly active crossover. Provides variable phase delay for two drivers in a 3-way setup - typically the mid-driver and the tweeter
|
||||||
 2 Way Linkwitz-Reilly active crossover with a number of useful features including a variable x/o point, baff le-step and bass-boost. This very flexible circuit can also be used as a gain-stage. Optional Phase-delay module can be purchased separately.
Recommend -/+15v regulated power supply
|
||||||

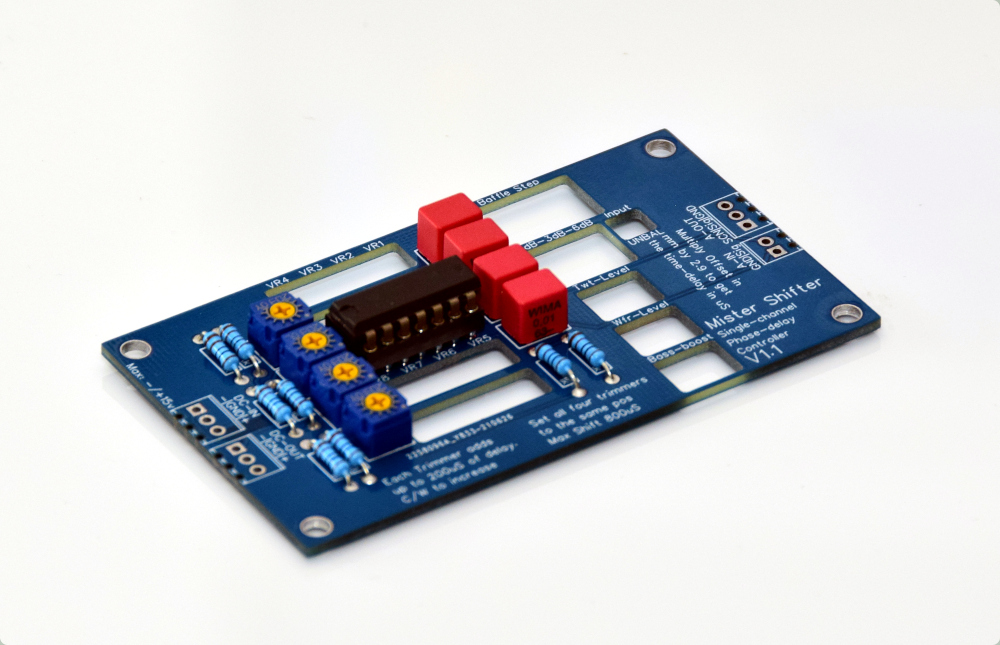

 Phase Shifter Module, for use with 2 Way Linkwitz-Reilly active crossover. Provides variable phase delay for one driver in a 2-way setup - typically the tweeter
|
